2WD Trucks

Larry Hilworth 4

Larry Hilworth – 2 Wheel Drive Trucks

 2 Wheel Drive Trucks

SCS Gearbox, you leading manufacturer in High Performance Tractor Pulling Parts.

Here at SCS Gearbox we do not just limit ourselves to one class of Tractor pulling. We work to be able to provide something for everyone in all classes and in all aspects of racing. Two Wheel Drive Pullers have been coming to us for years for many different items including Axles, Hubs, transmissions and so much more. We pride ourselves with the idea that what the customer needs we must provide. We strive to give every puller or racer what they need to get the Edge at their next competition. SCS Gearbox works to make sure we provide the strongest most reliable parts on the market and we keep everything you could need in stock or just a few days away from being out the door. Fast and Reliable, so when you need something we can get it to you before your next event or at least try.

Take a Look Below to see everything that we have available for your 2 Wheel Drive Puller.

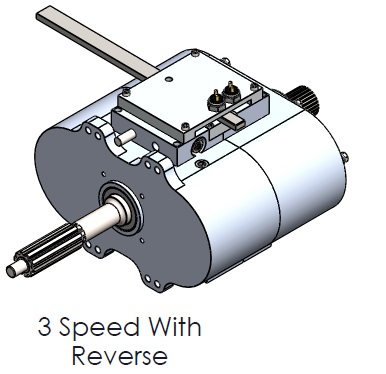

Transmissions3 Speed with Reverse

Twin Counter Shaft Single Speed, Bell Mount or Mid-Mount, 1 ¾-27 In & Output

Twin Counter Shaft 2 Speed, Mid Mount, 1 ¾-27 In & Output

30-Series with Reverse, 1 3/4-10 Output, Neutral switch & Reverse switch included, Input Length per customer, 1 3/8-10 Spline in stock, Pilot ID per customer

30-Series with Reverse, 2 1/16-32 Output, Neutral switch & Reverse switch included, Input Length per customer, 1 3/8-10 Spline in stock, Pilot ID per customer

Twin Countershaft Single Speed With Reverse, 2 1/16-32 Output, Neutral switch & Reverse switch included, Clutch Brake Optional, Input Length per customer

Twin Countershaft Single Speed With Reverse, 1 3/4-10 Output, Neutral switch & Reverse switch included, Clutch Brake Optional, Input Length, Spline, & Pilot ID per customer

3 and 4 Speed Countershaft Transmissions – New Billet Aluminum Transmission Design, 3 speed with Reverse, 4 Speed Aux, 4 Speed with 10 Series Reverse, Input shaft built to customer specs, 1 3/4-27 spline output, Ratios available from 3.177 underdrive to 3.177 overdrive

Reversers

10 Series Reverser with Brake

10 Series Reverser with Brake

10 Series

  •       Weight 45 Lbs
    Input Built to Customers’  Requirements
    Available with 1 3/4-10 spline or 2 1/16-32 Spline
    Available with or without Clutch brake

Zero Drag Reverser

  •      Weight: 42lbs
    1 ¾ 27 or 10 Spline Output
    Save up to 80 hp. over 10 Series
    Input built to customers’ specs.

Axles

Solid Axles, 2-1/16-32 Spline (SCS Lifetime Warranted Axles)

  •           26″-32″
  •           32″-36″
  •           36″-41″

Gun Drilled Axles, 2-1/16-32 Spline, Saves 5.5 pounds per foot (SCS Lifetime Warranted Axles)

  •           21 1/2″-25″
  •           26″-32″
  •           32″-36″
  •           36″-41″

Dana 80 Axles

  •           Dually Length
  •           Single Wheel Length
  •           35 or 37 Spline
8 Lug F106 Hubs and Drive Plates

8 Lug F106 Hubs and Drive Plates

F-106 Replacements

  •           300M, 19 or 34 Spline, up to 41″ in Length

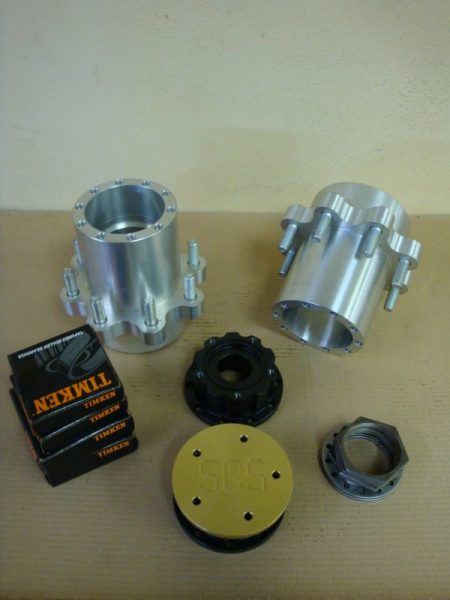

Hubs

Rear Hubs

  •           8 Lug F-106 Aluminum Rear Hub, Stock Location
  •           F-106, with 3/8 & 7/16 Drive Plate Bolt Pattern
  •           F-106, with 6 Lug Flange
  •           F-106, Stock Location
  •           F-106 Dually Rear Hub
